Romica have developed a range of CTD winches and accompanying LARS that have been proven to increase the overall operational efficiency In terms of both the data collection rate, and quality. Romica has a unique approach to the control beyond a standard AHC system.
Totally integrated traction winch and LARS that ensures safe and reliable deployment of the CTD rosett and controlled decent velocity which minimises time to carry out operations sucessfully, saves vessel time, optimises data processing and ensures data integrity.

The range includes also:
Active heave compensation
Electrical and hydraulic driven winches
With or without level wind
Level wind operation can be mechanicaL, electrical or hydraulic drive
We have supplied winches with cable length capacity up to 6000m

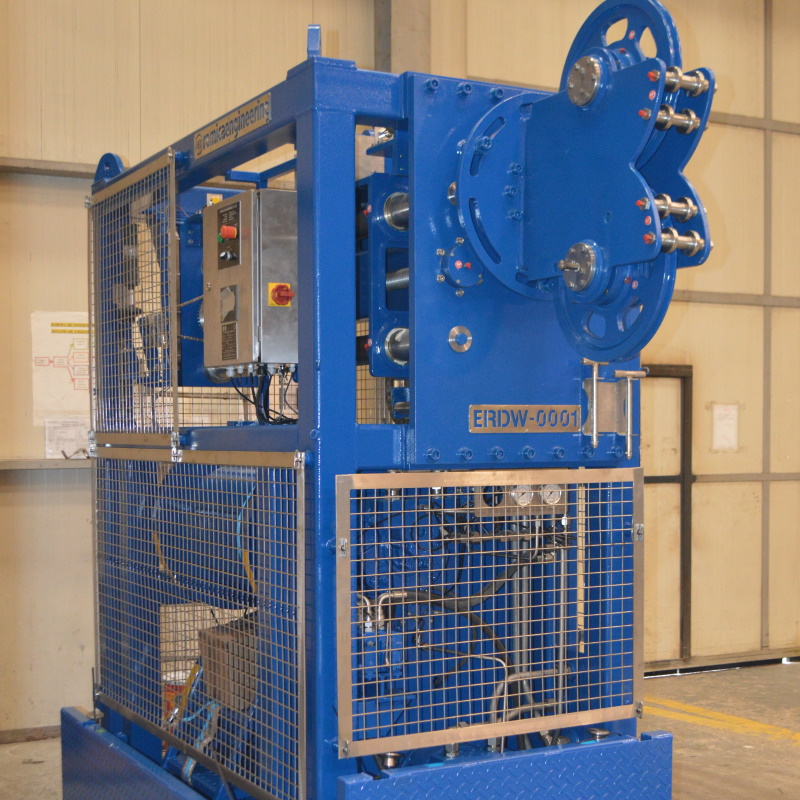

1.5Te - 800m & 200m Datasheet

Weight without cable 4200 Kg
Cable diameter 12 mm; / 11.4;
Capacity 800 m; / 2000 m;
Line speed - First Layer 35 m/min; / 42 m/min;
Line speed - Top Layer 60 m/min; / 60 m/min;
WLL - First Layer 1500 Kg; / 1500 Kg;
WLL - Top Layer 1080 Kg; / 890 Kg;
Brake Minimum 1.5 WLL - First Layer 4100 Kg; / 4100 Kg;
Brake Minimum 1.5 WLL - Top Layer 2960 Kg; / 2440 Kg;
Winch Hydraulic Drive Supply Required 200 bar 90 l/min per winch drum
Level Wind Hydraulic Drive Supply Required 200 bar 50 l/min
Local Proportional Control Only for manual level wind adjustment
Level wind Right Angled - hydraulic driven, automatic pulse driven level wind with manual adjustment
Dimensions (LxWxH)
2764 x 1131 x 2682 mm
2020 x 1050 mm, 4693 x 3409 mm platforms deployed
Slip ring Designed to accept Trolex 4845-4 or similar not within scope of supply
Cable Lead-off Angle Min + 0° Max + 45° Vertical plane
Frame details Crash frame with guards, fork lifting pockets and certified lifting lugs
Winch drum dimensions Drum core Ø 425 mm, Drum Length 804mm, Flange Ø 650 mm and Drum core Ø 460 mm, Drum Length 804mm, Flange Ø 850 mm
Drum details Lebus shell drums; 12mm wire is stored in 8 lays with 66 turns per lay. 11.4 wire is stored in 15 lays with 70 turns per lay
Cable 12mm Steel wire
11.4mm Rochester A 302799
Hydraulic Ports P G1/2” BSP, T G3/4” BSP, D G1/2” BSP, A & B G3/4” BSP

Principle of Operation:

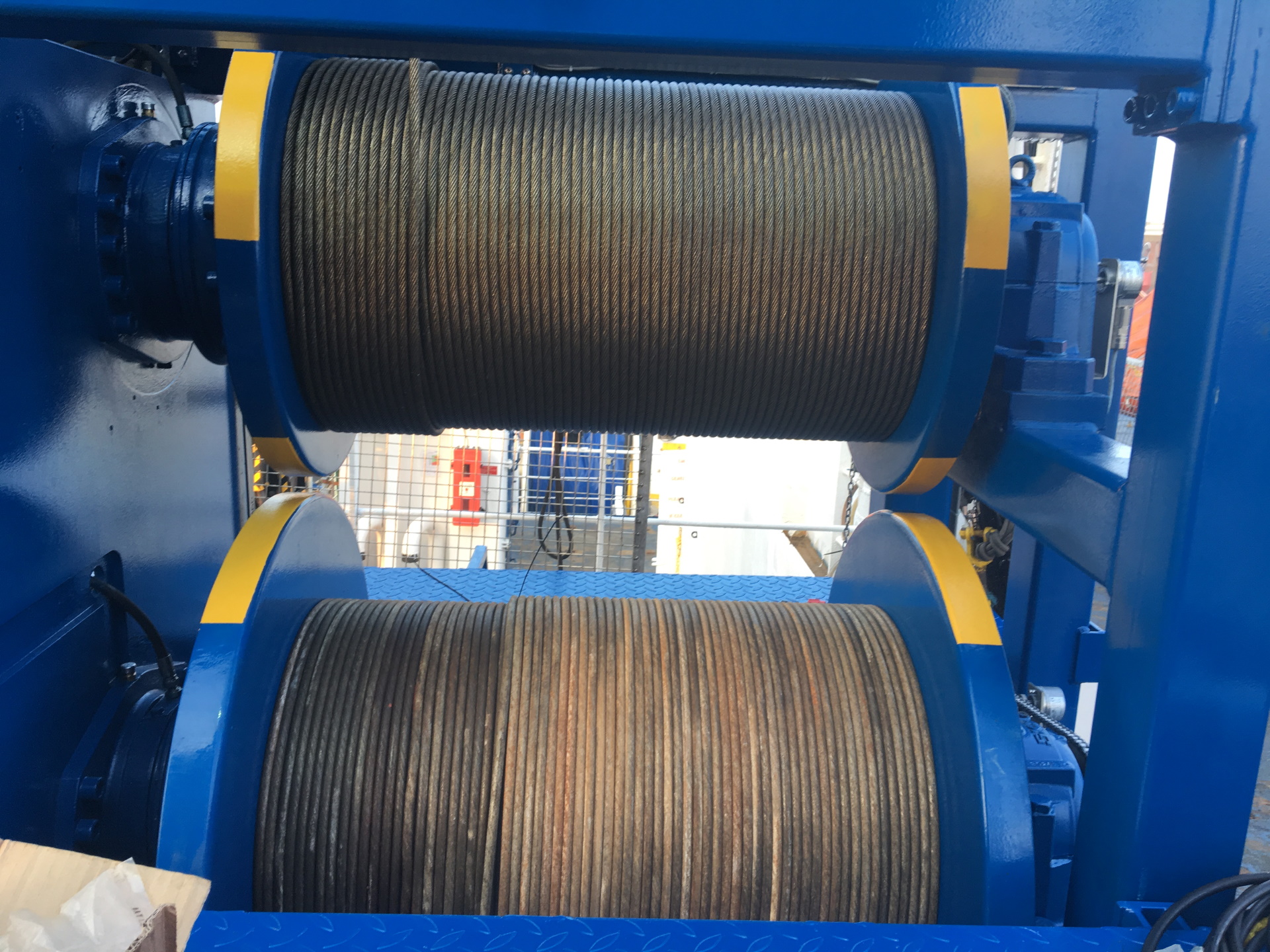

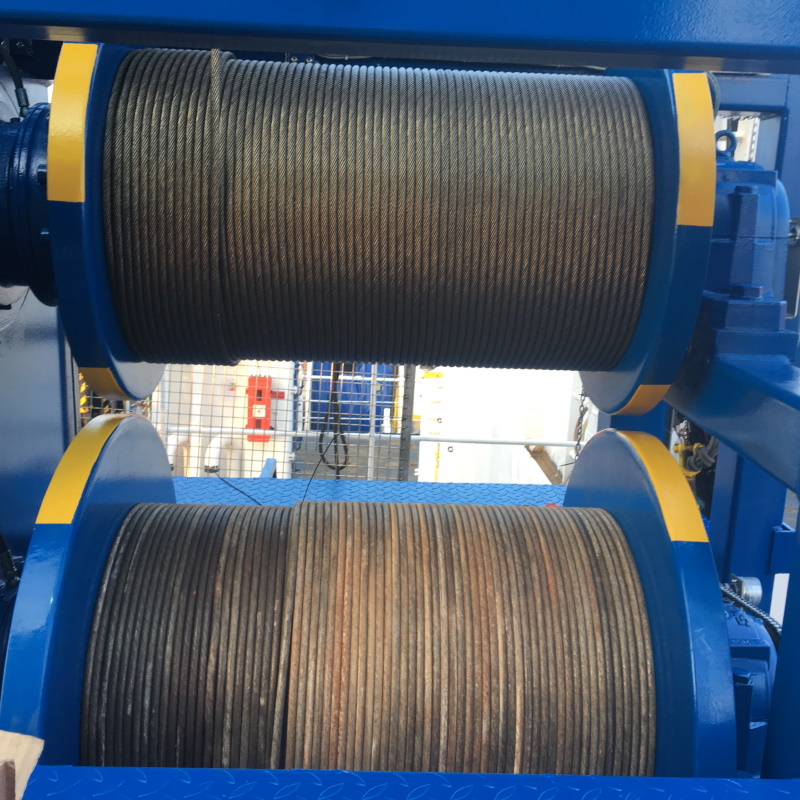

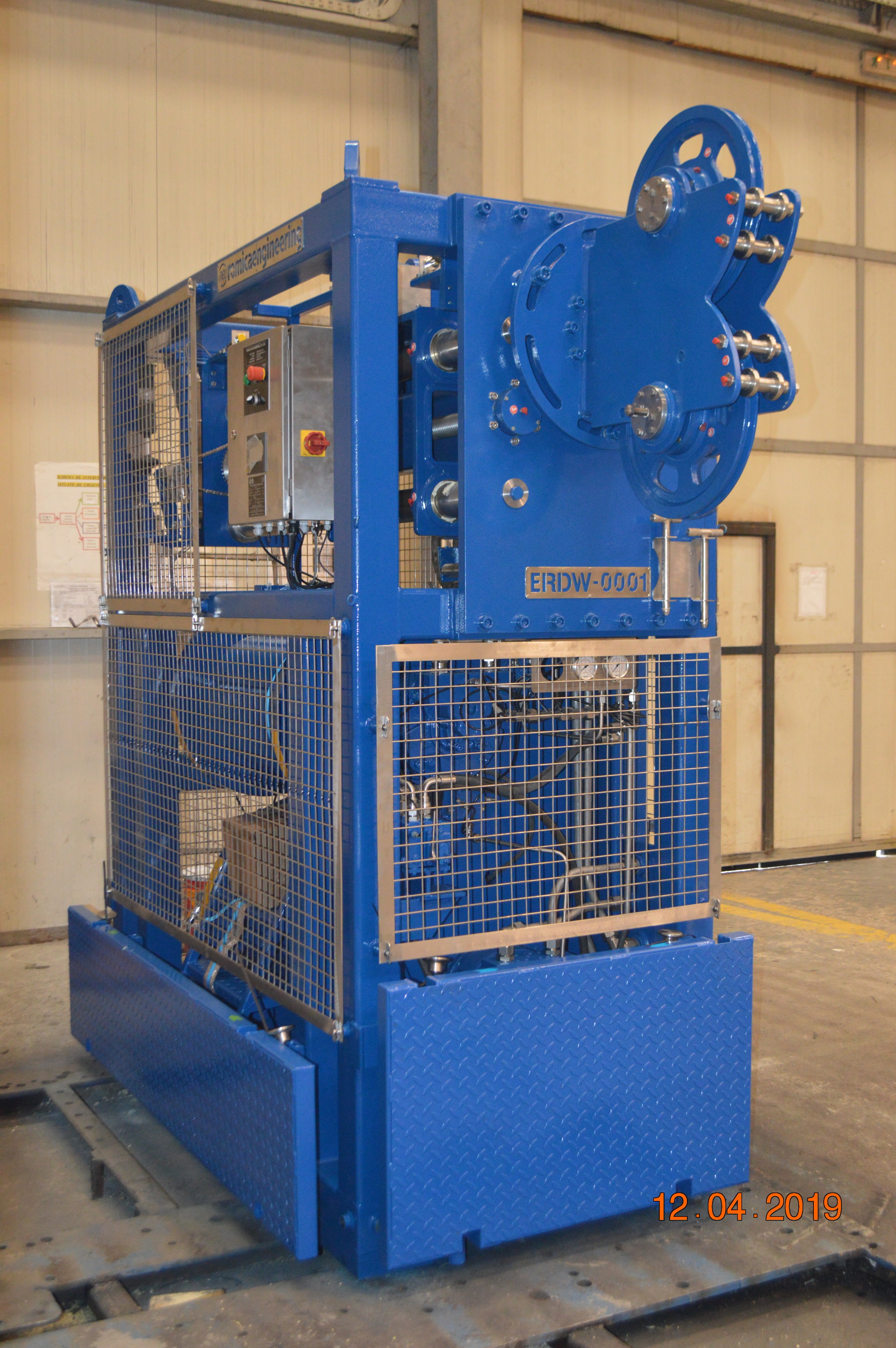

Each winch drum is independent and mounted one above the other and are driven directly from a SAI gearbox, hydraulic motor and load valve combination. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings the bearings and the lower drum a slipring.

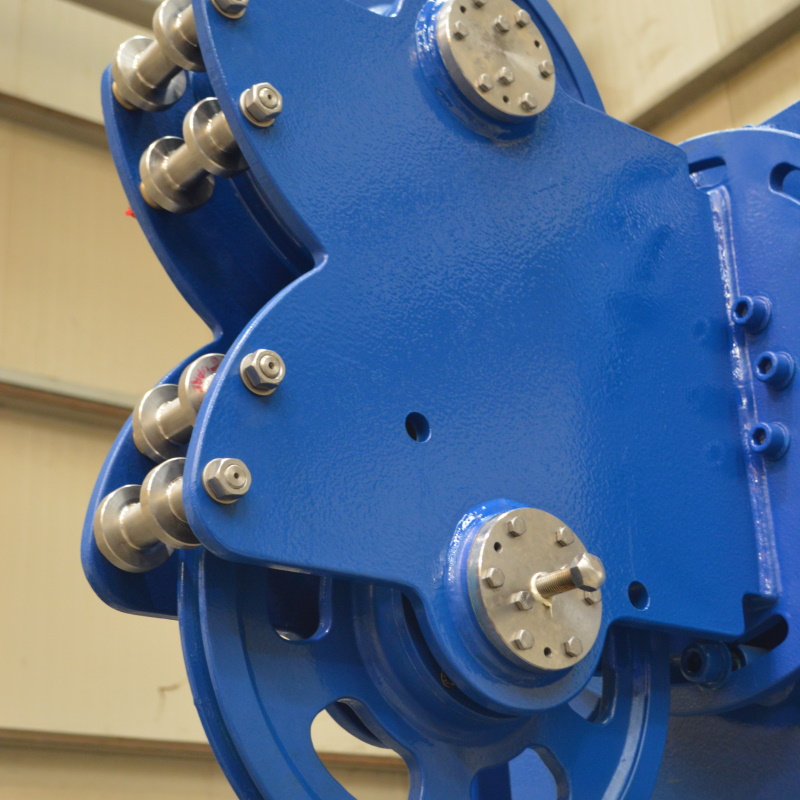

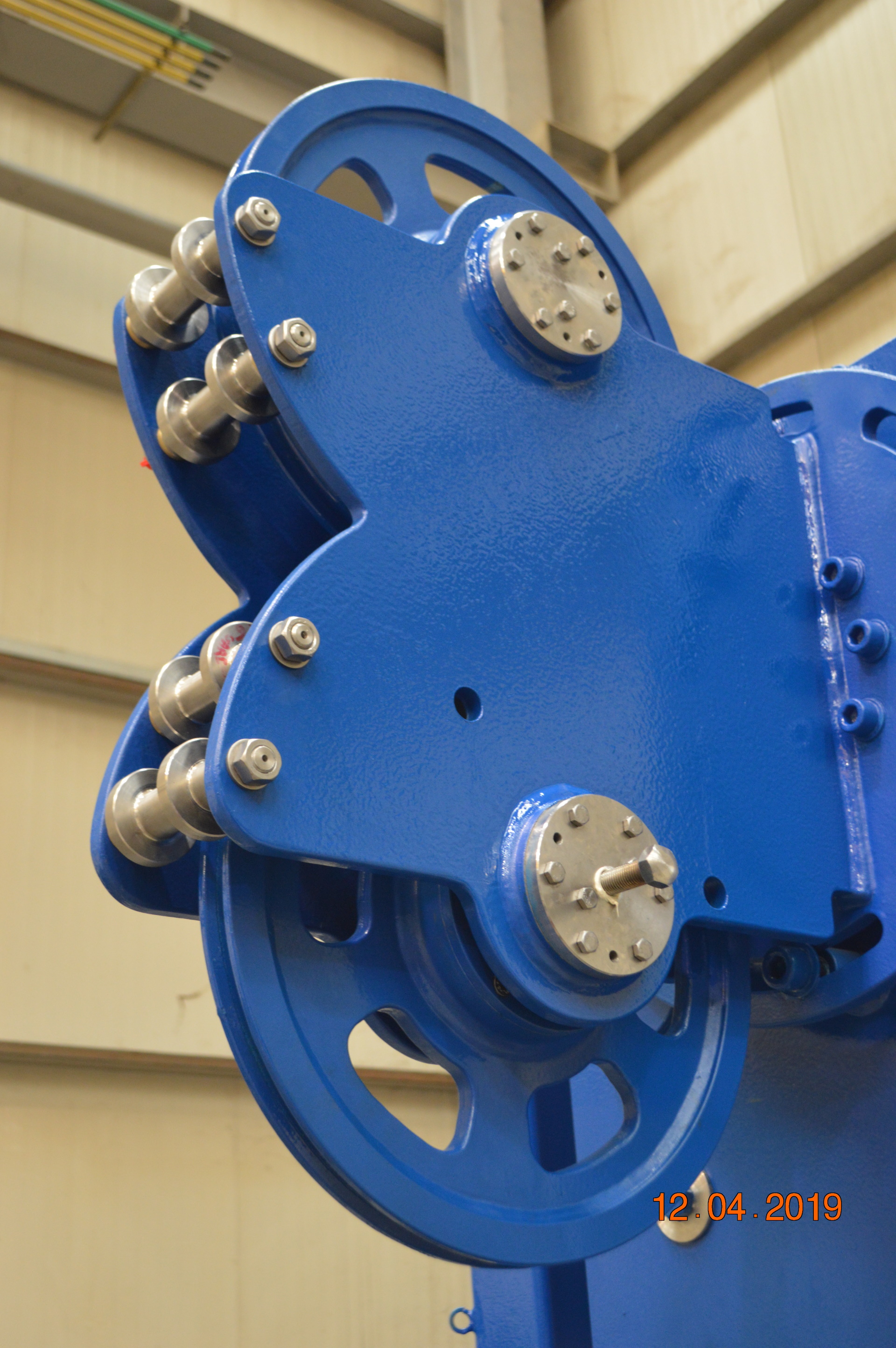

The 90 degree right angled hydraulic driven Level wind is coupled with a dual sheave, PLC controlled and is automatic with a manual override via a local proportional valve. The lower sheave can be swung down to enable easy reconfiguration between the different cable diameters as required. The Level wind is adjusted via the HMI during reconfiguration between the different cable diameters

HMI displays cable/wire tension and line measurement via a load pin within the level wind sheave.

The winch is supplied with the following:

1 Set - sacrificial steel feet/mounting plates for mounting at ship 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles Canvas Cover for transport and storage
Marine grade paint system (Details can be supplied on application) 12 Month Warranty Operation and Maintenance Manual in Electronic Format
1 Off – Winch running flashing lights and/or Klaxon Detachable and foldable maintenance platforms Remote HMI Display

Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.

1 Off – Slip Ring details to be supplied with order 1 Off – Full Spares Kit 1 Set – Spare sacrificial feet/mounting plates
1 Off – Extended Warranty 1 Off – Spare Programmed SD Card for level wind control. Remote Control wired or wireless
