MULTIFUNCTIONAL WINCHES
Multifunctional Winches

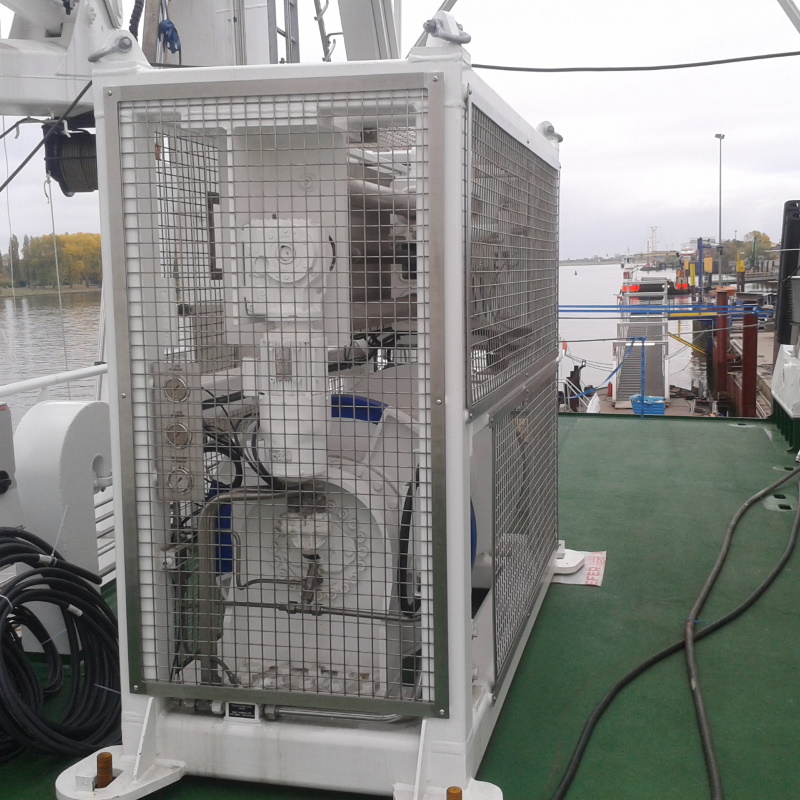

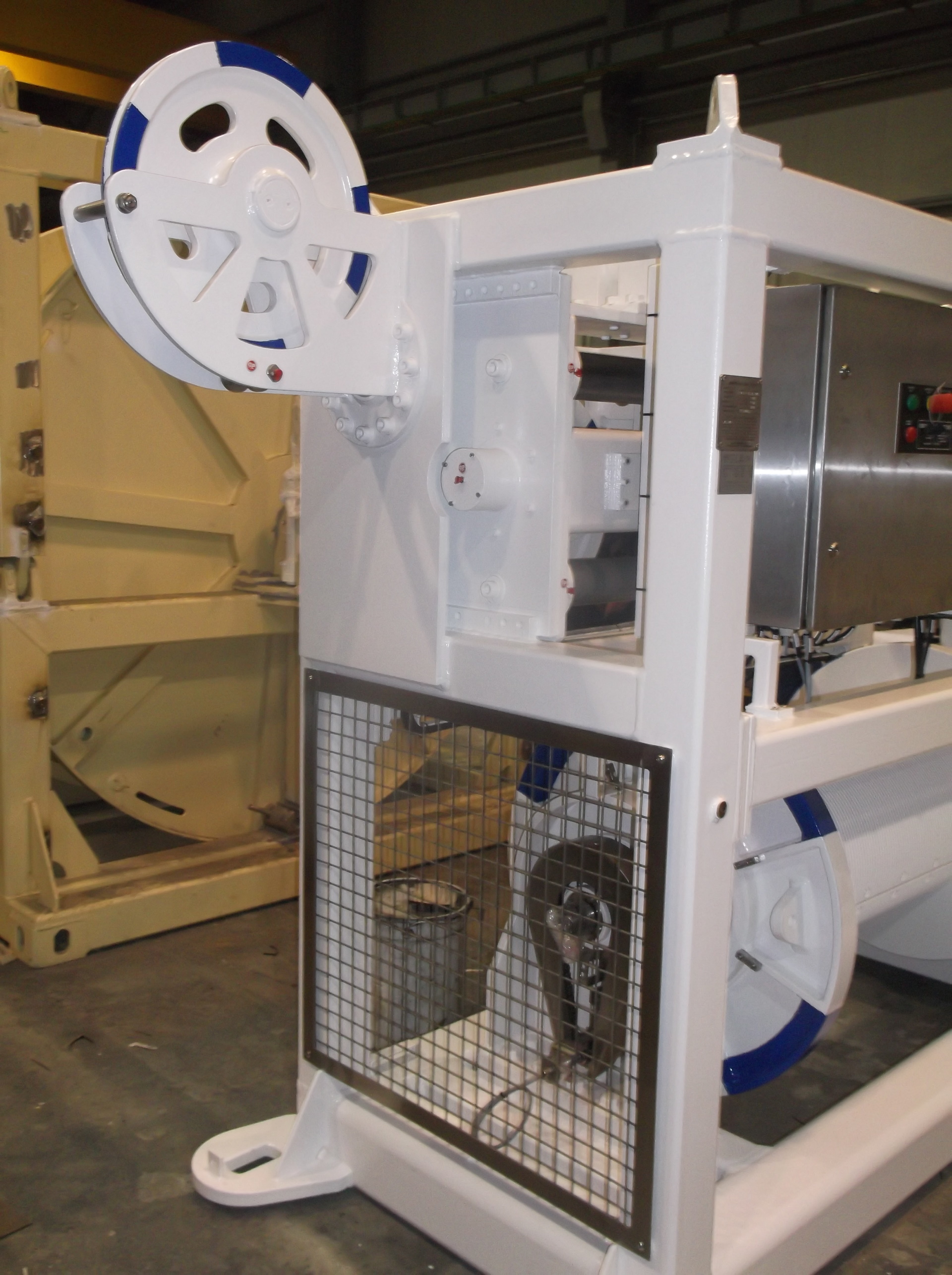

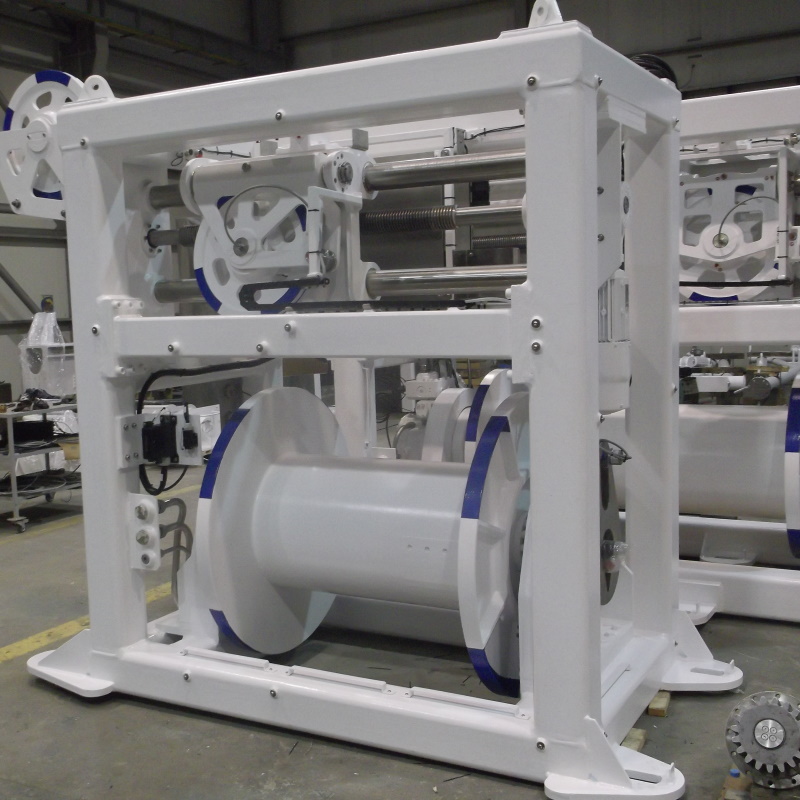

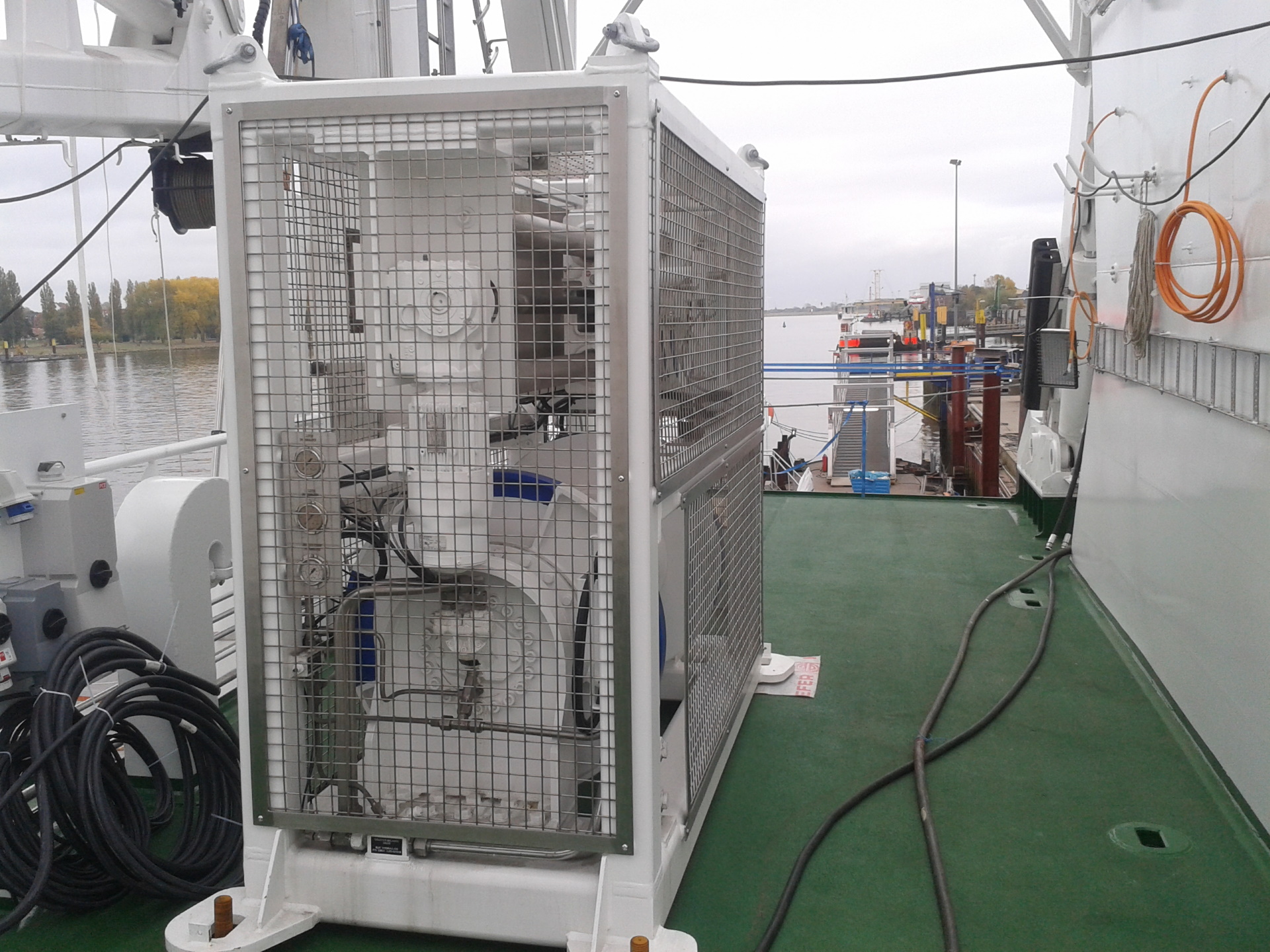

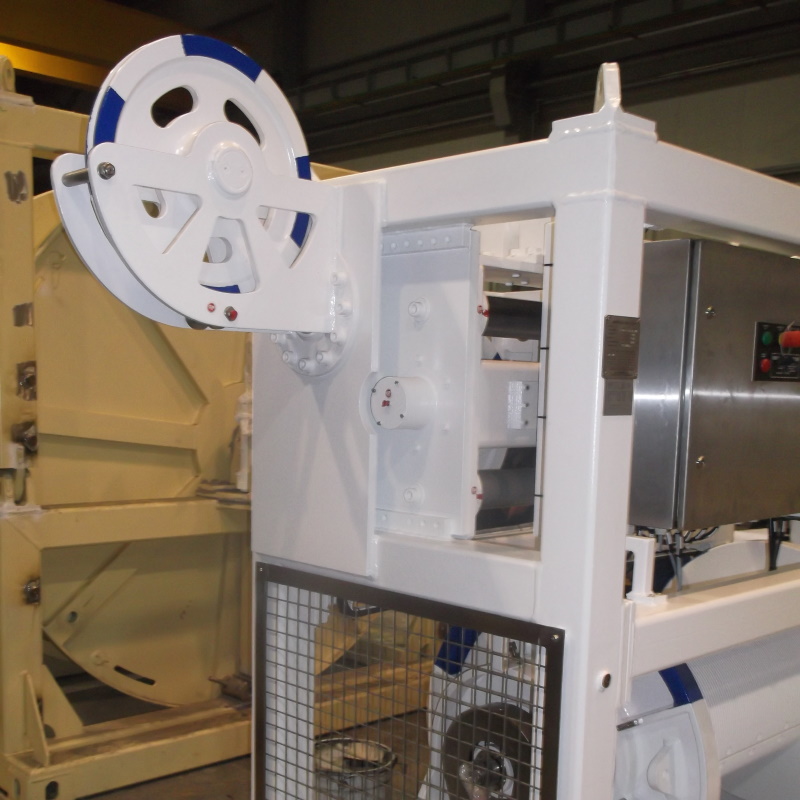

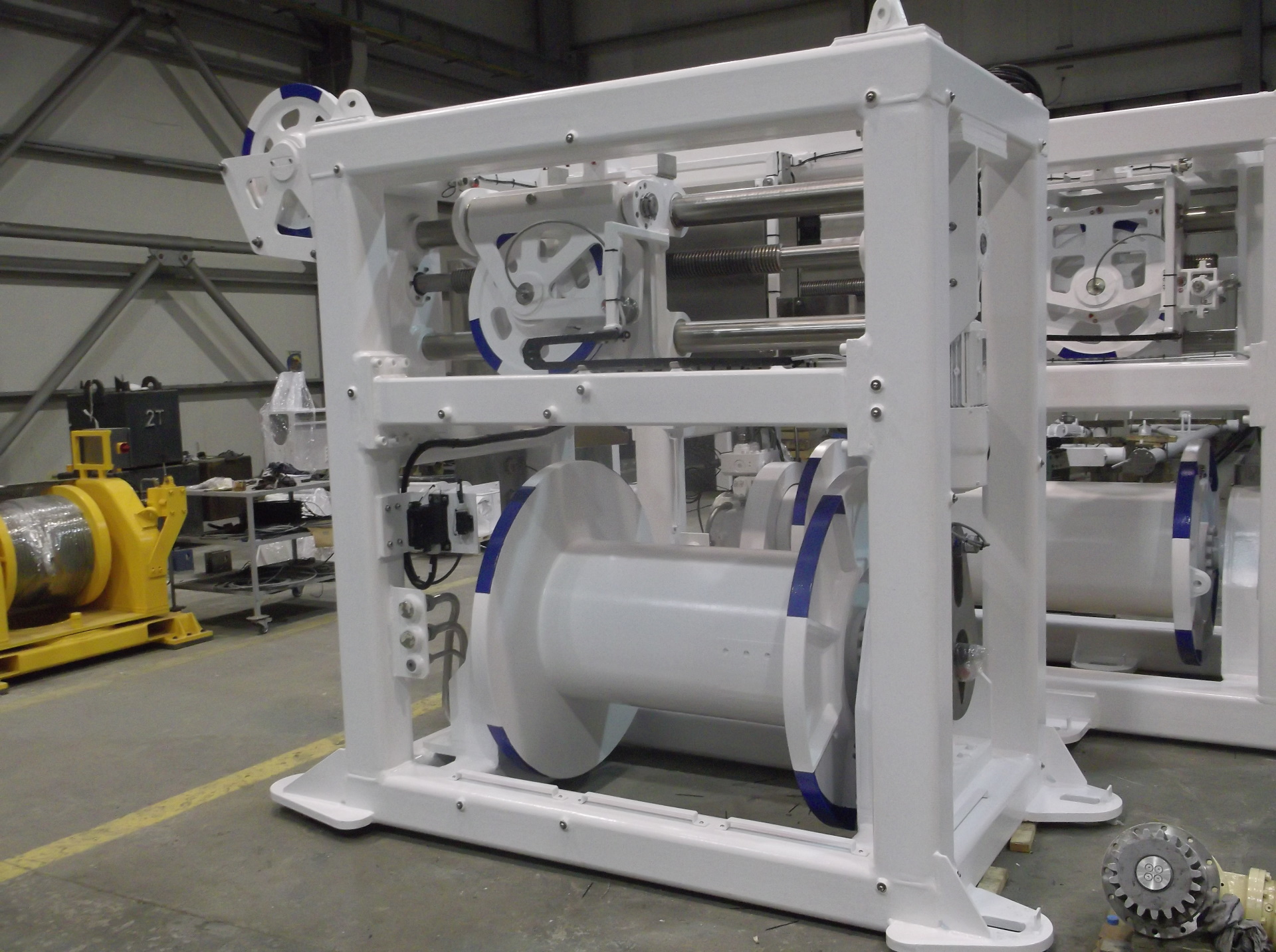

2.5Te - 3000m Datasheet
| Weight without cable | 3200 Kg |
| Cable diameter | 11.43 mm |
| Capacity | 3000 m |
| Line speed - First Layer | 50 m/min |
| Line speed - Top Layer | 90 m/min |
| WLL - First Layer | 2545 Kg |
| WLL - Top Layer | 1500 Kg |
| Brake Minimum 1.5 WLL - First Layer | 3900 Kg |
| Brake Minimum 1.5 WLL - Top Layer | 2250 Kg |
| Winch Hydraulic Drive Supply Required | 200 bar 130 l/min per winch drum |
| Level Wind Electrical Motor Supply Required | 1.5 Kw IP56 IE3 380-440V-3 Ph- 50/60 Hz |
| Local Proportional Control | Bi-directionally proportional joystick |
| Level wind | Right Angled - Electrically automatic pulse driven level wind with manual adjustment |
| Dimensions (LxWxH) Footprint | 1260 x 2842 x 2207 mm 1260 x 2735 mm with twist lock option |
| Slip ring | Designed to accept Focal 180 or similar not within scope of supply |
| Cable Lead-off Angle | Min + 0° Max + 45° Vertical plane |
| Frame details | Crash frame with guards, fork lifting pockets and certified lifting lugs |
| Winch drum dimensions | Drum core Ø 480 mm, Drum Length 1070 mm, Flange Ø 900 mm |
| Drum details | Lebus shell drum; the wire is stored in 16 lays with 90 turns per lay |
| Cable | Rochester A 302799 |
| Hydraulic Ports | P G1” BSP, T G1” BSP, D G1/2” BSP |
Principle of Operation:
The winch drum is driven directly from a Bonfiglioli gearbox, hydraulic motor and load valve combination. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings a bearing and a slipring.
The 90 degree right angled Level wind electrically driven from the 1.5 kW SEW Electric gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required.
HMI displays Line Speed, Line Load, Line Out and Line In with the provision of load monitoring with user selectable limits for line tensioning.
The winch is supplied with the following:
| 1 Set - sacrificial steel feet/mounting plates for mounting at ship | 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles | Canvas Cover for transport and storage |
| Marine grade paint system (Details can be supplied on application) | 12 Month Warranty | Operation and Maintenance Manual in Electronic Format |
Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.
| 1 Off – Slip Ring details to be supplied with order | 1 Off – Full Spares Kit | 1 Set – Spare sacrificial feet/mounting plates |
| 1 Off – Extended Warranty | 1 Off – Spare Programmed SD Card for level wind control | Remote Control wired or wireless |
| 1 Off – Winch running flashing lights and/or Klaxon | 1 Off – Laptop c/w software and leads for on-site fault diagnosis |

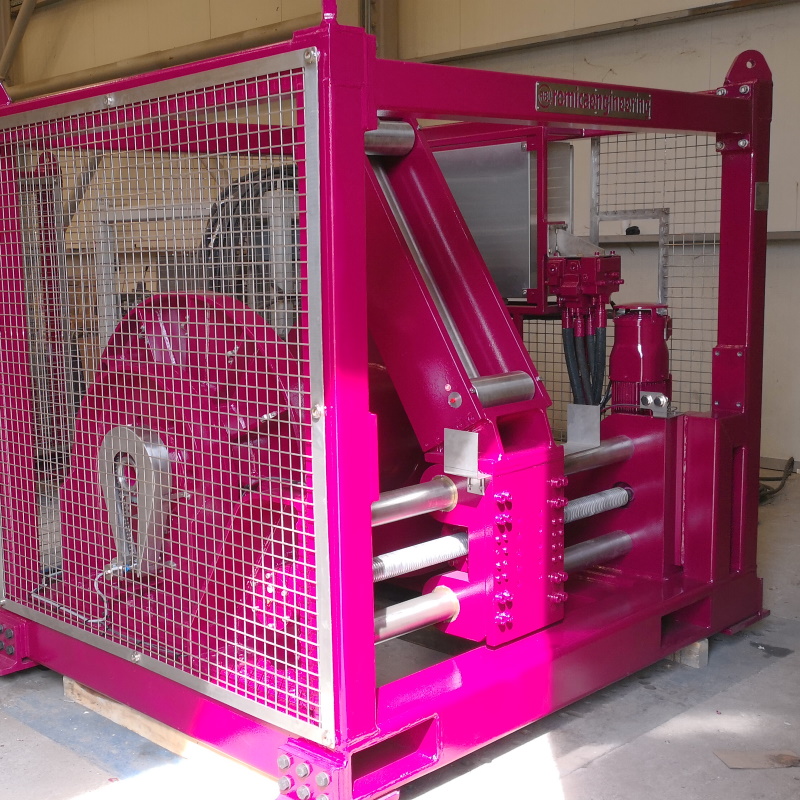

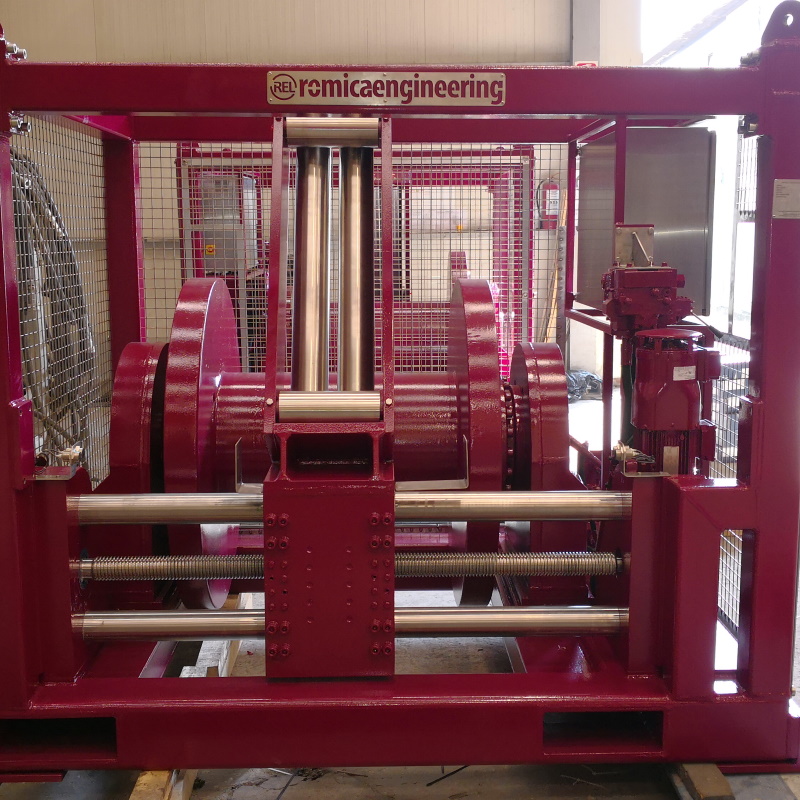

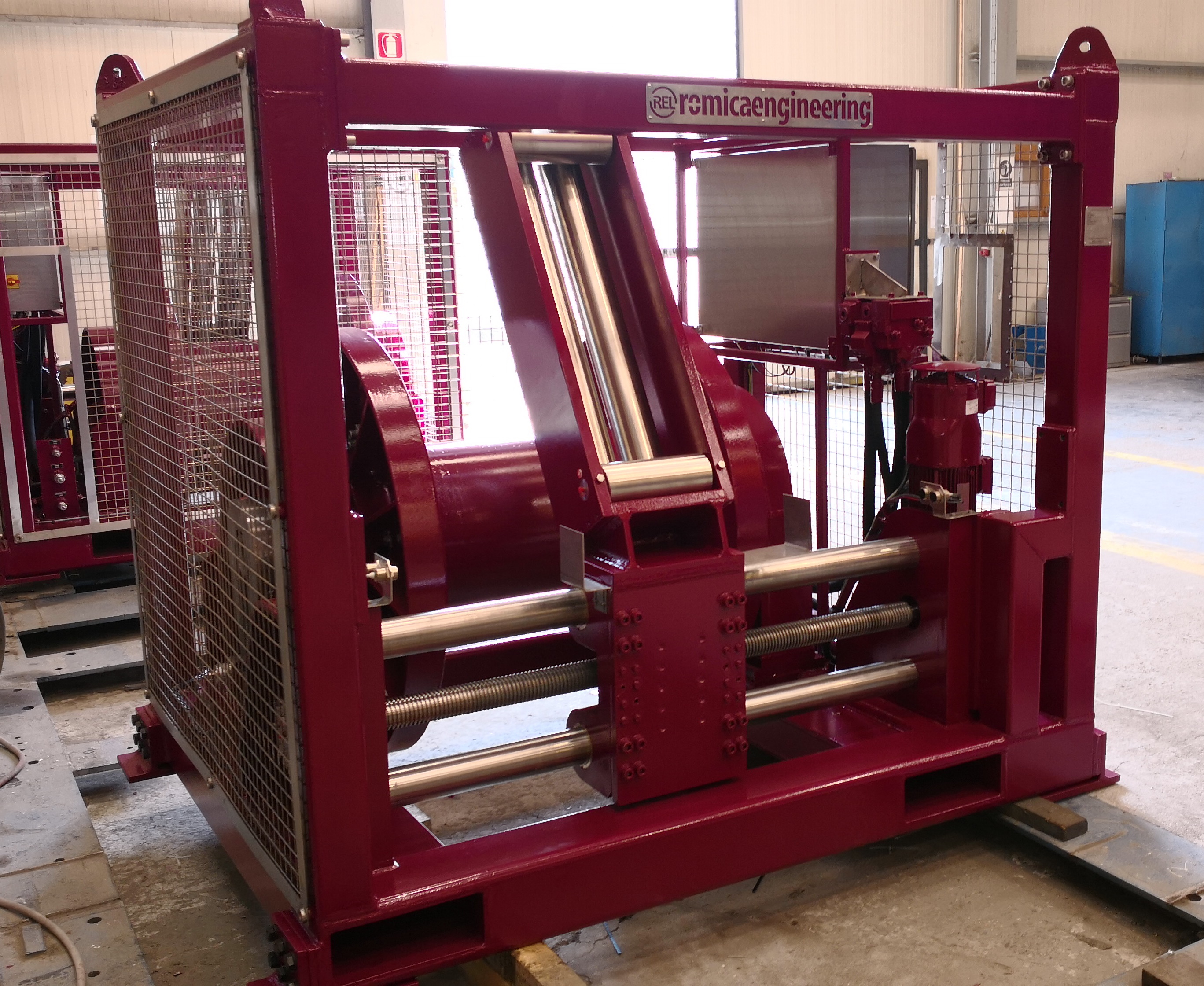

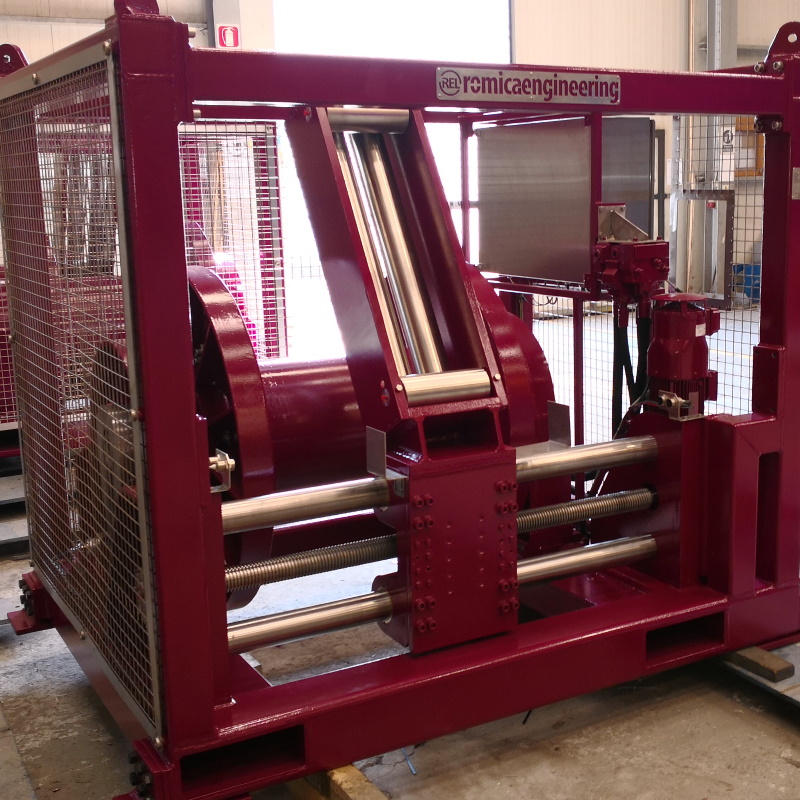

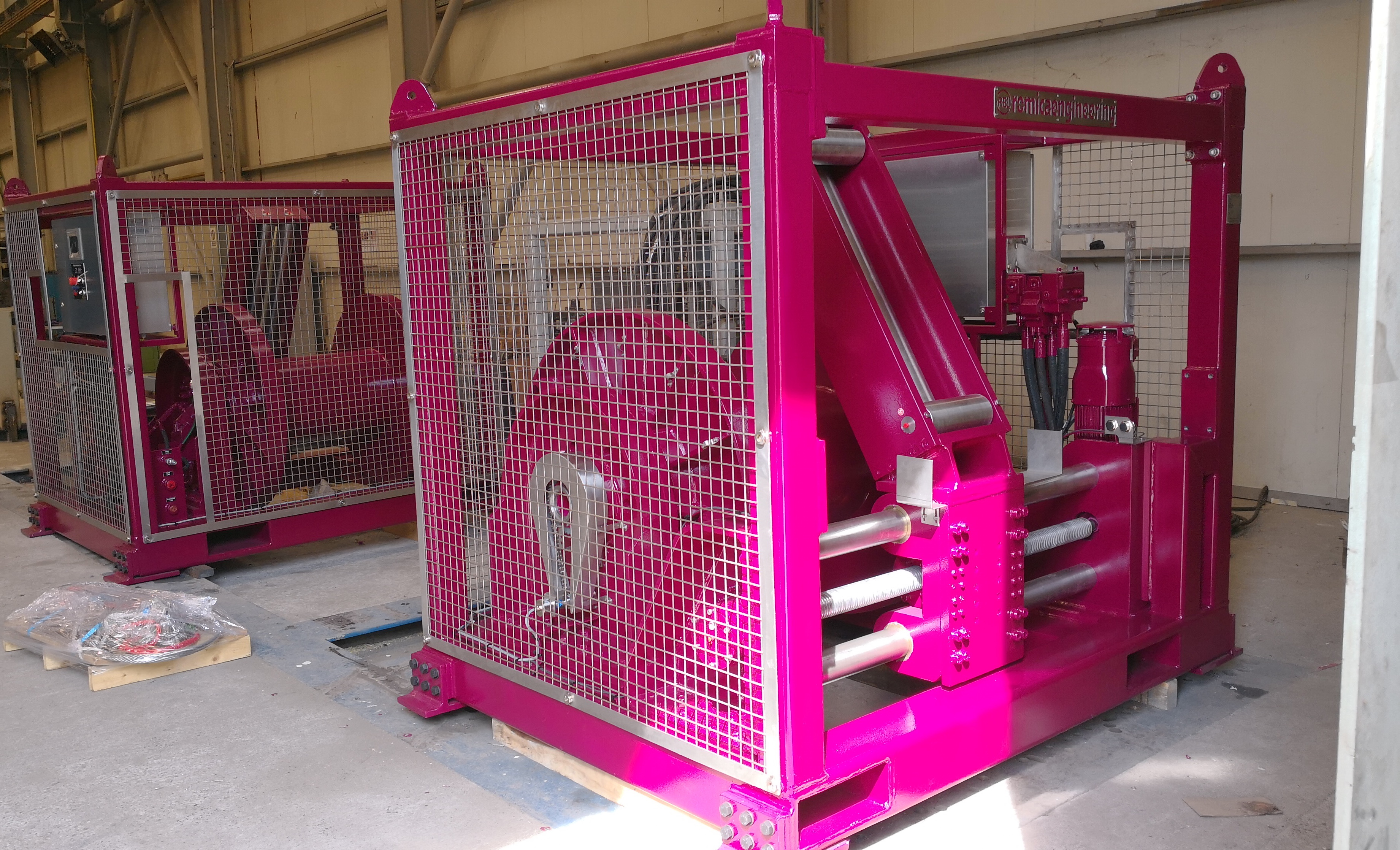

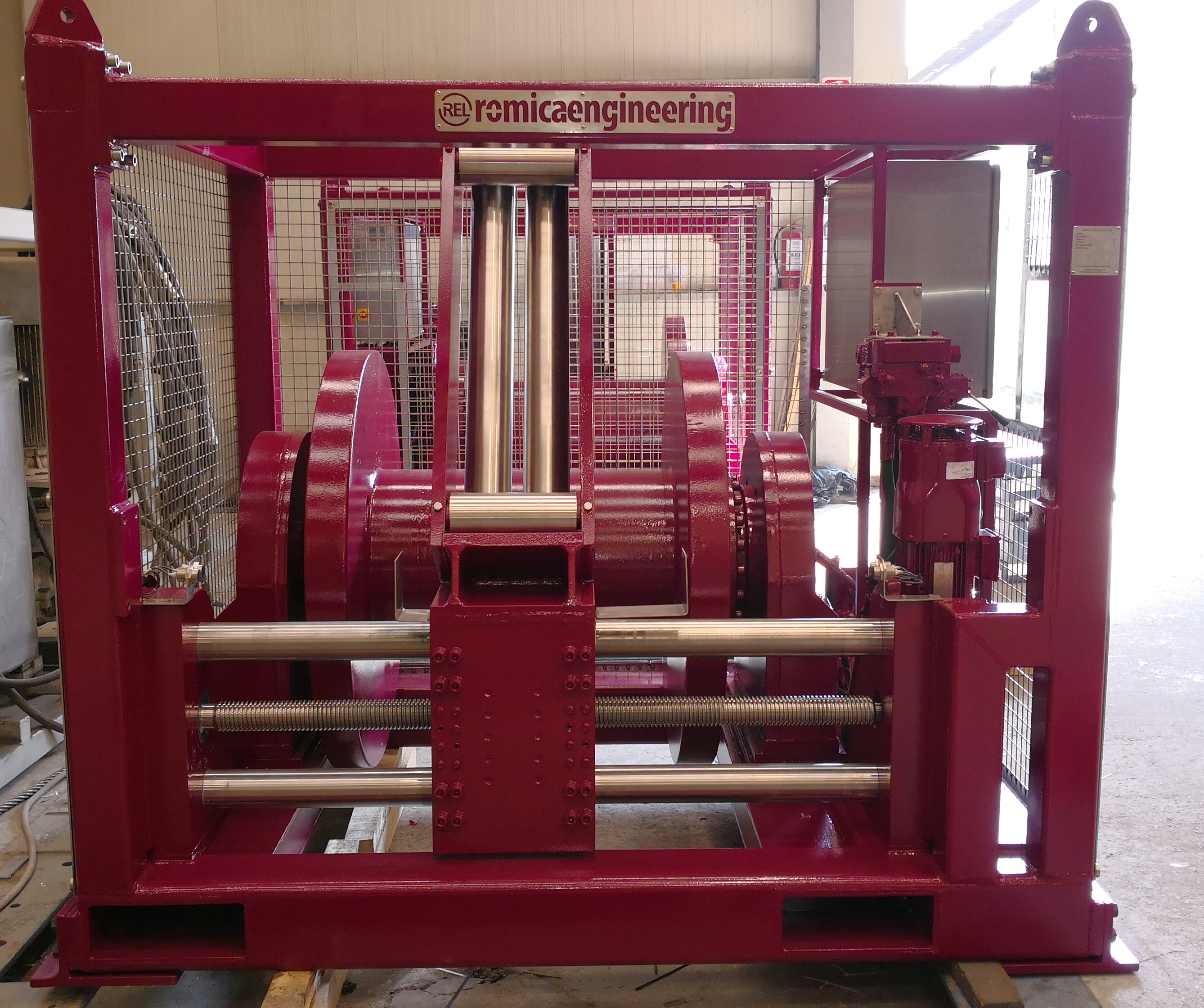

7.4Te - 1000m Datasheet
| Weight without cable | 4500 Kg |
| Cable diameter | 22 mm |
| Capacity | 1000 m |
| Line speed - First Layer | 30 m/min |
| Line speed - Top Layer | 16 m/min |
| WLL - First Layer | 7430 Kg |
| WLL - Top Layer | 4500 Kg |
| Brake Minimum 1.5 WLL - First Layer | 11145 Kg |
| Brake Minimum 1.5 WLL - Top Layer | 6750 Kg |
| Winch Hydraulic Drive Supply Required | PWD3700 200-300 bar 120-240 l/min |
| Level Wind Electrical Motor Supply Required | 1.5 Kw IP56 IE3 380-440V-3 Ph- 50/60 Hz |
| Local Proportional Control | Bi-directionally proportional joystick |
| Level wind | Electrically automatic pulse driven level wind with manual adjustment |
| Dimensions (LxWxH) Footprint | 2410 x 1750 x 2063 mm 2410 x 1750 mm |
| Slip ring | Designed to accept Focal 180 or similar not within scope of supply |
| Cable Lead-off Angle | +/-15° Horizontal plane Min + 4° Max + 40° Vertical plane |
| Frame details | Crash frame with guards, fork lifting pockets and certified lifting lugs |
| Winch drum dimensions | Drum core Ø 500 mm, Drum Length 836 mm, Flange Ø 1180 mm |
| Drum details | Plain drum; the wire is stored in 12 lays with 38 turns per lay |
| Cable | 22 mm but can accept the range 8 to 22 mm wire rope, overwound |
| Hydraulic Ports | P G3/4” BSP, T G1” BSP, D G1/2” BSP |
Principle of Operation:
The winch drum is driven directly from a Brevini gearbox, hydraulic motor and load valve combination. The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings a bearing and a slipring.
The Level wind electrically driven from the 1.5 kW SEW Electric gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required. The top vertical roller is easily removed to allow the cable to be removed from the levelwind carriage as required, hence preserving the end termination during cable changes.
The front crash bar is secured with bolts and is removable and stored within the winch in the ‘Working Position’.
The winch is supplied with the following:
| 1 Set - sacrificial steel feet/mounting plates for mounting at ship | 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles | Canvas Cover for transport and storage |
| Marine grade paint system (Details can be supplied on application) | 12 Month Warranty | Operation and Maintenance Manual in Electronic Format |
Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.
| 1 Off – Slip Ring details to be supplied with order | 1 Off – Full Spares Kit | 1 Set – Spare sacrificial feet/mounting plates |
| 1 Off – Extended Warranty | 1 Off – Spare Programmed SD Card for level wind control | Remote Control wired or wireless |
| 1 Off – Winch running flashing lights and/or Klaxon | 1 Off – Laptop c/w software and leads for on-site fault diagnosis |
